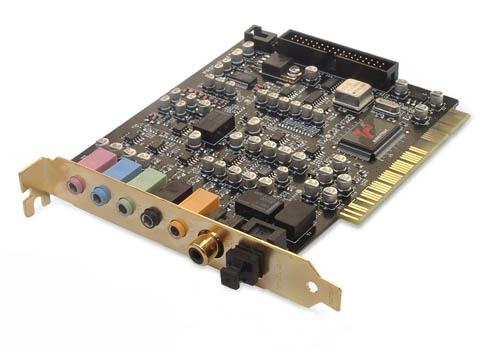

PRODIGY 192 is the perfect audio board for those who ready to make the commitment to do higher quality digital recordings in a Multimedia environment. PRODIGY 192 features a 24-bit 192Khz Coaxial output, 24-bit 96kHz Optical Output, 24-bit 96kHz A/D converter and 24-bit 192kHz D/A converter for Analog I/O with 104dB dynamic range. Other features include: stereo analog line inputs, MIC preamp with +5V phantom power, headphone amp output and full duplex(simultaneous record and playback) capability.
PRODIGY 192 offers complete compatibility with Dolby Digital and DTS surround formats. Used with a software DVD Player like WinDVD 4.0(included), you've got a full-blown 5.1up to 7.1 home theater system.
PRODIGY 192 supports the E-WDM driver for perfect compatibility with Windows XP, 2000, ME and 98SE offering ultra low latency performance with all popular digital audio software applications including Nuendo, Cubase, Cakewalk, Sonar, Logic and the others.
PRODIGY 192 is an excellent solution for professional musicians, Gamers and DVD fans, DJs and the others.
PRODIGY 192 Features: * 24-bit 192kHz D/A Converter and 24-bit 96kHz A/D Converter * Supports the 24-bit 192kHz Resolution for DVD-Audio Format * 2ch Recording and 8ch Playback at the same time * 24-bit 192 kHz Digital Coaxial Output and 24-bit 96kHz Digital Optical Output with Dolby Digital / DTS Pass Thru * Optional Support for 7.1 Surround Sound * Analog 2 In 6 Out with Individual Output Volume Control * Windows Media 9 (WMA 5.1, 24/96) ready * DVD-Audio format Ready * 7.1 Channel DVD Surround Sound Ready * MIC Preamp & Headphone Amp * DirectWiRE featured E-WDM Driver * Support All The Major 3D Game Sound What you can do with PRODIGY 192: * Record sound sources from DVD to any multi-track recording applications with DirectWIE technology without extra wiring. * Record, Mix, and Master 24-bit 96kHZ sound source with all major music application. * Play back 192kHz sound sources like DVD Audio. * Play up to 5.1 surround sound through multiple Digital and Analog audio outputs with a software DVD player like Win DVD 4.0 (included). * Play back WMA 5.1 multi-channel audio of Windows Media 9. * Send the digital audio via the Optical outputs to CD or DAT recorder. * Equipped with Sensaura 3D sound and reverb engine, Prodigy 192 supports all the major game sound formats, including DirectSound/3D, A3D 1.0, EAX 1.0, EAX 2.0, Macro FX, Environment FX, Multi Drive, Zoom FX and I3DL2.
DirectWIRE feature: The PRODIGY 192 supports DirectWIRE function that is provided by E-WDM supported products from AUDIOTRAK. This unique feature will simplify hassles of wiring externally for Inter-driver/Inter-application audio data transfers. For example, when you record sound sources from DVD to Cakewalk Sonar(or any multi-track recording applications), you have to do complicated external wiring, but by using DirectWIRE, you don¡¯t need external cables at all. Also DirectWIRE digital processing can reduce loss of sound quality or data. Using DirectWIRE, you can record any kind of media (even if it¡¯s a copy protected media) to your computer. And when you use software synthesizers, virtual instruments or DVD, DirectWIRE will help you to simplify your setup.
Specification: * High quality 24bit 192kHz D/A converter; 104dB Dynamic range * High quality 24bit 96kHz A/D converter; 100dB Dynamic range * 24bit 192kHz Digital Coaxial Output * Analog 2 In / 6 Out; -10dBV unbalanced 1/8"(3.5mm) Mono and stereo Input and 3 x stereo -10dBV unbalanced 1/8"(3.5mm) Output channels recording and 8 channels playback at the same time * 24 bit 192kHz Coaxial output * 24 bit 96kHz Optical output * Supports multiple Sampling Rates: 16, 22, 24, 32, 44.1, 48, 88.2, 96, 176.4, 192kHz(176.4, 192kHz: playback only) * Full Duplex - Simultaneous Record/Playback * Uses 32bit PCI slot: PCI Bus-Mastering support * MIC preamp with +5V Phantom Power * Headphone amp * Supports the E-WDM driver: WDM and Asio2.0 Direct KS support for SONAR OS: Microsoft Windows XP/2000/ME/98SE Including WinDVD 4 special edition - Provides 24-bit 96kHz High Resolution Audio SRS TruSurround XT SRS TruSurround XT processes any multichannel audio source, as is usually found on DVDs, and transforms the material into virtual surround sound from just two speakers or headphones. SRS Dialog Clarity SRS Dialog Clarity provides you with the power to bring crisp, clear dialog from your playback material. SRS TruBass SRS TruBass enhances the bass impact when you have small speakers. Dolby Digital Decoder Delivering incredible sound with 5.1 channel systems, advanced audio processing also provides optimum sound with 4-channel gaming speakers and 3D enhancements for 2-channel systems. Dolby Digital EX Dolby Digital EX allows you to enjoy the highest quality audio by expanding 5.1 channel sources to up-to 7 Channel speaker systems. ICE (up to 7.1) ICE takes 2 channel audio (stereo) like a MP3 file and transforms it into 5.1 to 7.1 channel surround sound. Minimum System Requirements 1. Intel Pentium III CPU or equivalent AMD CPU 2. Mainboard with Intel/VIA 3. 128MB of RAM 4. One available PCI slot 5. Microsoft Windows 98SE/ME/2000/XP operating system
|
