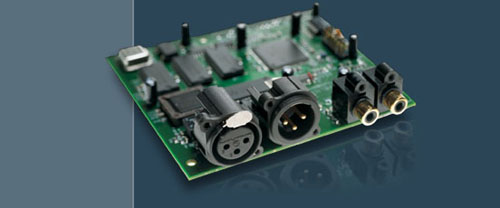

The VoiceCraft Human Voice Modeling Card, the new upgrade card for the company's debut live and recording vocal processor, the VoicePrism adds the additional DSP power, algorithms, Voice Modeling technology and hardware compliment to the processor as a path for VoicePrism owners to upgrade to the equivalent of a VoicePrismPlus.

The front panel controls are the same. All improvements and new features are neatly contained within the internal software, so you can avoid the hassle of learning new controls.

MAIN FEATURES
1st generation VoiceModeling technology for lead-voice character enhancement.
Full vocal channel including TC-quality Compression, EQ, Delay, Tape Delay, Chorus, Flange, Reverb with Pre-delay
Digital I/O (AES/EBU)

TECHNICAL SPECIFICATIONS
Digital I/O
Connectors: XLR (AES/EBU)
RCA Phono (S/PDIF)
Input Format: 24 Bit
Output Format: 24 bit processed audio on VoiceCraft Card
AES/EBU and S/PDIF
24 bit unprocessed ADC output on
VoicePrism Plus S/PDIF
Digital Output
Output Dither: HPF/TPDF dither 24/20/16/8 bit
(VoiceCraft Card outputs only)
Sample Rates 44.1kHz;48kHz
Frequency Response DIO: DC to 23.9 kHz ± 0.01 dB @@48 kHz
Analog Inputs
Connectors: XLR Balanced (pin 2 hot),TRS 1/4"
Impedance (Bal/Unbalanced-Line): 28 kOhms
Max.Input Level Line: +21dBu
A to D Conversion: 24 bits,100dB dynamic range (A-weighted)
THD: 0.005%@1kHz (A-weighted)
Frequency Response: 10Hz -12kHz ±0.8dB,-2dB @20kHz
Analog Outputs
Connectors: TRS 1/4"
Impedance: 680 Ohms (stereo out);340 Ohms (mono out)
Max.Output Level: +21 dBu
D to A Conversion: 24 bits,100dB dynamic range (A-weighted)
