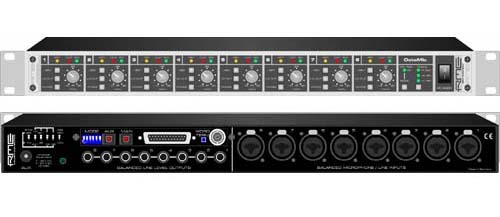

The OctaMic D includes the optional OctaMic ADC module, which can also be added to the OctaMic basic version later on. The ADC module adds 8 channels of pristine 192 kHz AD-conversion, available as double ADAT output (S/MUX, up to 96 kHz), and simultaneously via DB-25 connector as 4 AES outputs (up to 192 kHz). The ADC can be clocked internally (master), and externally via word clock and AES sync.
RME's outstanding SteadyClock™ ensures perfect AD-conversion, as jitter on the external sync-sources is nearly completely removed. All settings are done via DIP-switches on the back of the OctaMic D. Analog outputs and both digital outputs operate fully simultaneously. The choice of reference level affects the analog outputs only, the signal/clip indication and the AD-conversion will react only to the Gain-pots.
TECHNICAL SPECIFICATIONS AND FEATURES Top
Operates with voltages ranging from 7-30V DC oder AC, allowing operation with practically any power source, including batteries
High-quality switching power supply included, for worldwide operation at 100-240 Volt
Max. output level +21 dBu
SNR: 129 dB EIN @ 150 Ohm
THD: < 0.006% @ 30 dB Gain
Frequency response: 5 Hz - 200 kHz, - 0.5 dB
Unbeatable price/performance ratio!
OctaMic ADC Module
SNR: >110 dBA
Supported sample rates: 32 kHz - 192 kHz
THD: < -110 dB
Sync sources: AES, Word, internal
SteadyClock™ ensures best sound quality even with jittery external clocks
