EVENTIDE

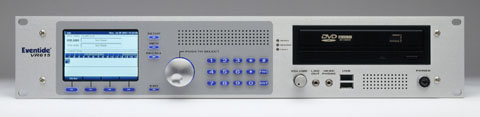

VR615



MISSION-CRITICAL RELIABILITY, MISSION-ENHANCING HARDWARE AND SOFTWARE
Eventide invented the digital logger in 1989. Our new VR615 re-invents the logger, using the open Linux operating system for expandability and versatility that neither proprietary nor Windows ® -based systems can match! Eventide has earned a reputation for the highest degree of fault-tolerance and the easiest to use loggers in the industry. By combining the best attributes of our purpose-built hardware with the flexibility of the Linux operating system we have created the best of both worlds — in an economical package!

CONTROL FROM THE FRONT PANEL, ACCESS FROM THE NETWORK & VICE VERSA!
The VR615 logger features a big, bright 320x240 color TFT display, with backlit keys and scroll knob for full front-panel functionality. Monitor and playback right at the logger! Multiple users can simultaneously recall, monitor, and playback at any Windows 2000 or XP networked workstation.

LINUX OPERATING SYSTEM IS FASTER, MORE RELIABLE, AND COST EFFECTIVE
Because we use Linux, there are no licensing fees to pay, and reliability is dramatically improved with this leaner and more efficient operating system. Because the logger runs from solid-state Flash Memory, it is not susceptible to hard drive failure.

SCALABILITY AND FLEXIBILITY ARE ENGINEERED-IN
We know that your needs can change, so we have designed the VR615 to accommodate a wide variety of interfaces. Analog recording channels are scalable from 8 to 48 channels; digital channels from 16 to 48. What's more, you can mix analog and digital channels in the same unit. On/Off - hook, VOX, and continuous record activation are all selectable on a per-channel basis, as are beep tones and automatic gain control (AGC). The VR615 also supports DTMF and CLID telephone number detection. Compression rates of 13.3kb/s, 16kb/s, 32kb/s, or 64kb/s are selected for each group of channels. Configuration is programmable — no tricky hardware adjustments necessary!

FAULT TOLERANT STORAGE FOR MONTHS (OR YEARS!)
Fully redundant RAID-1 dual mirrored 120GB hard drives are standard, yielding 19,800 channel hours of recording at 13.3kb/s. For archiving, a 9.4GB DVD-RAM drive is available which holds 1,540 channel hours of audio.

FEATURE-RICH CALL BROWSER WITH NO LICENSING FEES
The Call Browser provides access from an unlimited number of standard PC workstations running Windows 2000 or XP, and up to 16 workstations can browse the VR615 simultaneously. Multiple VR615s can be operational on a single network without interfering with your existing network or servers. Our Call Browser is a self-installing and self-contained application that requires minimal system resources from your workstation, yet provides full access to the Call Record Database.

COMPREHENSIVE USER FEATURES
All call records are stored in a state-of-the-art relational database. Our Call Browser search features include filtering by Channel Name, Time/Date, Duration, Dialed Number, ANI, DTMF, Caller ID, Call Direction or Call Tag. Up to 8 channels of Playback or Live Monitoring are available simultaneously. You can create PC-compatible WAV files of single calls or all calls that comprise an incident.

MULTIPLE USER ID/PASSWORD SECURITY
The system administrator can create multiple user profiles to allow permissions to be man-aged down to the channel level using user ID and password security.

CHOOSE EVENTIDE
For over 30 years Eventide has built a reputation for technological innovation and reliability. Thousands of customers world-wide have come to depend on Eventide for mission-critical operations like emergency call centers and air traffic control communications. For more information about the VR615, call Eventide at 201-641-1200.


KEY FEATURES
STAND-ALONE DIGITAL LOGGER, FEATURING FULL FRONT PANEL CONTROL
LINUX OS PROVIDES FASTER, MORE RELIABLE AND MORE COST-EFFECTIVE SYSTEM
NETWORK SERVER WITH ACCESS FROM ANY NETWORK WORKSTATION
CALL RECORD DATABASE SERVER UP TO 16 SIMULTANEOUS ACCESSES FROM NETWORK PCS
FIELD-UPGRADEABLE FROM 8 TO 48 CHANNELS
USER-UPGRADEABLE SYSTEM OS RESIDES IN FLASH MEMORY
DUAL 120GB RAID-1 HARD DISKS
MIX ANALOG AND DIGITAL CHANNELS IN SAME SYSTEM
CALL RECORD BROWSER FOR WINDOWS PCS
DESKTOP INSTANT RECALL STANDARD
LIVE MONITOR OR PLAY UP TO 8 CHANNELS SIMULTANEOUSLY
TAG/SAVE CALLS
FULL-SCALE TIME LINE DISPLAY WITH MULTICHANNEL VIEW AND ZOOM CONTROL
SPOKEN TIME/DATE AT PC FOR RE-RECORD
RECORD ON DEMAND
SIMULTANEOUS RECORD AND PLAY FROM INTERNAL HARD DISK OR FROM ARCHIVE MEDIA
INPUT CARDS DETECT DTMF AND CLID FOR INCLUSION INTO CALL RECORDS DATABASE
CALL RECORD DATABASE SORTING AND FILTERING OF CALLS BY USER-DEFINED PARAMETERS
ARCHIVE PROTECTION PREVENTS PREVIOUSLY RECORDED MEDIA BEING RECORDED OVER OR REFORMATTED


SPECIFICATIONS
Front Panel GUI 320x240 color TFT LCD display
LED Indicators for operation and available functions
Soft keys, fixed keys, scroll wheel, keypad

Front Panel I/O USB master I/O
1/8” Line level output
1/8” Headphone output
Speaker with volume control

Remote PC Call Browser Eventide Call Browser software for Windows PCs

Channel Capacity Per Unit Analog - 8 to 48
Digital Stations - 16 to 48

Channel Capacity Per Networked System Completely scalable to >100

On-Line Recording Storage Dual mirrored 120GB RAID-1
19,800 channel hours

System Platform Digital non-proprietary PC server

Operating System Linux running from Flash Memory

Archive Recording Storage 9.4GB DVD-RAM
1,540 Hours

Built In Re-Record Capability CD-R in archive drive

Call Record Database Relational database of all call records with programmable retention

Playback Search Parameters Channel Name, Time/Date, Duration, Dialed Number
Caller ID Number, ANI DTMF Number, Call Tag

Playback Live Monitor, Simultaneous Record/Play,
Local speaker with volume control, Remote PC, Continuous,
Looped

Security Multiple user profiles control permissions to the channel level

Channel Inputs Compression Rates: 13.3, 16, 32 or 64kbit/s Mu-law
Frequency Response: 200 to 3400Hz
Signal to Noise: -50dB
Crosstalk: -60dB
AGC: 24dB Boost
Impedance: >10KOhm

Record Activation VOX
Off-hook detection
Continuous
External command

Analog Interfaces Analog Telephone, 2-Way Radio, any other audio sources
Beep Tone - built in, selectable on a per channel basis

Digital Interfaces Digital Telephone sets - Inquire

Network Ethernet: 100Mb/s
Dial Up: RAS Via Optional Modem
Protocol: TCP/IP

Control Software Windows-based Call Browser
Up to 16 simultaneous accesses
Desktop Instant Recall

Power Requirement Universal Supply: 100-240V, 50-60Hz
Nominal operating power: 150W

Physical Characteristics Height 3.5" (2U) by 19 Inches wide
Depth 19"
Weight 30 Pounds
