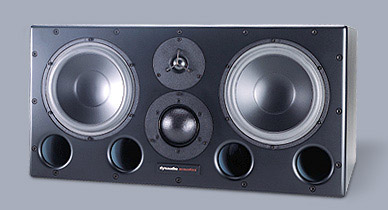

Stereo imaging is pinpoint accurate thanks to the computer optimised designs of the crossover and drivers, and the M2 is capable of SPLs of up to 125dB at 1.25m as a stand alone system. When combined with a pair of Dynaudio Acoustics subwoofers, the system becomes a full 4 way main monitoring system capable of very high SPLs with a full frequency response down to below 35Hz.
The original design concept for the M2 was a compact near-to-midfield monitor, which would remove the need for larger built-in systems with their inherent problems of accuracy, installation and cost. Every component of the M2 has been designed for both quality of reproduction and extreme reliability, and each driver can comfortably handle very high transients with no degradation of signal or components, leading to an outstanding dynamic response when coupled with a suitable amplifier with good current capabilities.
The result is a system which, in its various configurations, is the most flexible monitor package ever designed. By combining M2 with Dynaudio Acoustics subwoofer systems, it is possible to use one basic package for anything from desktop to main monitoring.
The M2 is essentially flat from 45Hz to 20Hz, and the specially designed bass, mid range and high frequency drivers are capable of reproducing impulsive transients of up to 1000W each without compression.
SPECIFICATIONS: System 3-way Passive Midfield/Main Monitor Frequency Response (+/- 3 dB) 34 Hz - 20 kHz Peak SPL 1m, pair (IEC Short Term) > 130 dB peak Peak SPL 2m, 5.1 (IEC Short Term) > 131.5 dB peak Max SPL 1m, (IEC Long Term) 114 dB RMS Amplifier minimum 100 W (> 100 dB SPL @ 2m) Sensitivity (2.83 V/1m) 91 dB Impedance, Nominal 4 ohm Impedance, HF (200 kHz) 9.6 ohm Resonance Prequency 45 Hz Internal Cabinet Volume 70 liters Bass Principle Bass reflex Crossover Frequencies 900/4500 Hz Crossover Slope Woofer 12 dB/oct; Midrange 12 dB/dB; Tweeter 18 dB/oct Tweeter 75 mm/3" soft dome, 75 mm/3" pure alu wire voice coil Esotec 28 mm/1.1" soft dome, Magnetic fluid, Rear chamber, Pure alu wire voice coil, 4 mm die-cast alu front Woofer 2*220 mm/8", One-piece molded polyprop cone, 54 mm/2" pure alu wire voice coil Weight 36.3 kg Dimensions (W*H*L) 340 x 680 x 500 mm
Navedena cijena je za komad.
|
