TANNOY STUDIO

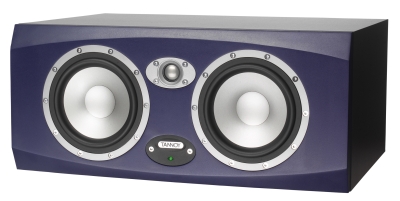

Reveal 66D



Introduction

The feature-packed Reveal D Active monitors set a new benchmark for very cost effective studio monitoring. They build upon the success and recording industry reputation of the famous original Reveal Active, a product that when launched in the mid nineties was widely recognised as the product that defined the category; since becoming the active monitor of choice for thousands of amateur and professional creative artists worldwide.


Main Features

Significant advances in digital speaker measuring techniques such as Klippell™ symmetry and non linear distortion analysis, laser scanning interferometry, acoustic CAD simulation, and precision manufacturing processes have all resulted in a comprehensively improved range of Reveal active monitors. The D models provide greater bandwidth, significantly lower levels of distortion, smoother responses, more accurate phase control, higher sensitivity levels and greater input source flexibility. Add in a comprehensive DIP switch activated calibrated EQ facility for mid / near / close field working in full / half /quarter and eighth space environments, midband and high frequency trim shelving controls, a choice of power and cabinet sizes, analogue and digital input trim facilities, and user requirements can be satisfied for all listening environments and applications.

The Reveal 5A is an active monitor delivering wide bandwidth, low distortion and high sensitivity for an overall smooth response. The tight, punchy controlled bass combines with clean and open midrange for superb vocal intelligibility to ensure the 5A offers professional monitor performance from an exceptionally compact package


Specifications

Reveal 66D
PERFORMANCE
Frequency response (1) 49Hz-51kHZ
Max SPL (2) 117dB
Distortion < 0.4%
Dispersion (@-6dB, 10kHz, horizontal) 90 degrees
DRIVE UNITS
LF/MID 2 x 165mm (6.50”) multi fibre paper pulp cone
WideBand™ HF 25mm (1.00”) titanium dome with neodymium magnet system.
Shielded Yes
ELECTRONIC SYSTEM
Inputs Balanced XLR/Jack, SPDIF RCA
SPDIF sampling rate 44.1 - 96kHz
Sensitivity 775mV for 100W
Crossover frequency 2.6kHz
Amplifier output power LF - 100W
HF - 50W
Outputs SPDIF slave out, RCA
User Controls Front panel mounted on/standby/mute LED indicator
Rear mounted trim +4/-10dB
80Hz hi-pass switch (for AV use)
16-way DIP switch selection for optimum response (see chart)
Power Supply Fixed mains voltage - region specific (to order) 110/220/230v
CABINET
Type Optimised bass-reflex loaded
Construction MDF cabinet and front baffle
Tongue and groove front and back panel
Finish Grey cabinet with blue painted baffle
Cabinet dimensions (HxWxD) 230mm x 527mm x 408.50mm
(9.05 x 20.78 x 16.08”)
Total Cabinet weight 17.3kg
(38lbs)


Navedena cijena odnosi se na komad
SEZONSKA AKCIJA 20% POPUSTA




Potrošački krediti:  €4967,26
Za gotovinu: €3973,80
Bez PDV-a: € 3179,04
Vaša ušteda: €993,46
