Application

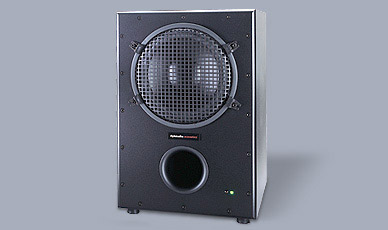

A single BX30 is a perfect match to any of the smaller Dynaudio Acoustics monitors, such as the BM5, BM6, BM6A or M1. The integrated 95Hz crossover, variable balance and phase adjustment allows perfect matching in any position giving complete freedom of movement and placement of the BX30 a feature that is very useful in confined spaces!
Two BX30s will be more than a match for the BM15 and BM15A, while four will rival the output of the world's largest monitor systems. The BX30 can grow with your equirements and give a lifetime ofservice.
Main features
The BX30 Subwoofer has been specially designed to compliment the active BM6A and BM15A monitors in both stereo and 5.1 setups. But being very versatile, multiple BX30s will compliment larger 5.1 setups, (consisting of for example five M1.5s), providing a very powerful system for your 5.1 studio.
The BX30 is equipped with a 305mm woofer in a ported cabinet. Dynaudio leading edge technology allows tuning of the bass driver and cabinet provi-ding you with an incredible increase of energy in the lowest frequency range.
The motor of the driver is a huge 102mm voice coil in combination with an extended magnet system.
The amplifier construction is especially designed to get maximum energy from the woofer. The BX30 has electronically balanced stereo Inputs and Outputs on 3 pin XLR connectors. The internal filtering of the BX30 is user selectable. To optimize the bass performance in combination with the main speakers, the phase is continuously djustable from 0ş to 360ş. Using the special utility In/Output several subs can be connected parallel.
SPECIFICATIONS:
Model BX-30A
System 1-way Active subwoofer
Frequency Response
(+/- 3 dB) 22 Hz - 80/95/120 kHz
Max SPL 1m, pair
(IEC Long Term) 118 dB peak (one speaker)
Max SPL 2m, 5.1
(IEC Long Term) -
Input level for 85 dB
SPL @ 1m (+4/-10) -28 dBu RMS / -42 dBu RMS
Input level for max peak SPL (+4/-10) +6 dBu peak / -9 dBu peak
Power consumption Idle: 25 W / Max: 900 W
Amplifier power Woofer: 130 W
Resonance Frequency 30 Hz
Internal Cabinet Volume 76 liters
Bass Principle Bass reflex
Crossover Frequencies Switch: 80/95/120 Hz, Out: 95 Hz/direct
Crossover Slope 24 dB/oct
Tweeter -
Woofer 30 cm, One piece molded polypropylene cone, 100 mm Pure alu wire voice coil
Weight 30 kg
Dimensions (WxHxL) 410 x 613 x 540 mm
