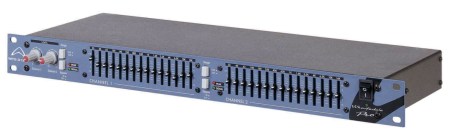

The WPG-315 fits standard 1U, 19” (482mm) racks. Using proven circuitry this equalizer is straightforward to use, reliable in operation and capable of excellent performance. The WPG-315 is housed in steel cases suitable for mounting in professional flight cases. WPG315 has the same features as WPG-331, except 15 equalisation bands per channel and without high-pass filter.
|
SPECIFICATIONS |
| MODEL |
WPG-315 |
| FREQUENCY RESPONSE: |
10Hz ~ 30kHz ±1dB |
| THD+N% |
< 0.03% 20~20kHz |
| SIGNAL TO NOISE RATIO (ref. +20dBm): |
114dB |
| FILTER FREQUENCIES |
25Hz, 40Hz, 63Hz, 100Hz, 160Hz, 250Hz, 400Hz, 630Hz, 1kHz, 1.6kHz, 2.5kHz, 4kHz, 6.3kHz, 10kHz, 16kHz |
| MAXIMUM BOOST AND CUT GAIN: |
± 12dB |
| LEVEL CONTROL RANGE: |
± 12dB |
| INPUT IMPEDANCE: |
10k ohm (BALANCED) |
| OUTPUT IMPEDANCE: |
<600 ohms (BALANCED) |
| MAX OUTPUT LEVEL: |
+22dBm (BALANCED) / +22dBm (UNBALANCED) |
| MAX INPUT LEVEL: |
+22dBm (BALANCED) / +22dBm (UNBALANCED) |
| HIGH PASS FILTER RANGE |
|
| POWER CONSUMPTION |
12 WATTS |
| POWER: |
95V~130 VOLTS AC, 50 - 60HZ
190V~ 250 VOLTS AC, 50 - 60HZ |
| DIMENSIONS: (HEIGHT WIDTH DEPTH) |
483 x 160 x 44 mm / 19 x 6.3 x 1.7 inches |
| WEIGHT |
3kg (6lbs) | |
|
