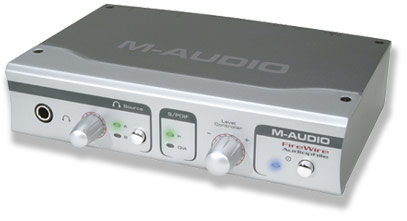

FireWire Audiophile is a compact, FireWire-compatible audio/MIDI interface that takes the legacy of M-Audio’s award-winning Audiophile line to the next level. 4 x 6 audio I/O combines with powerful on-board mixing in a mobile package that’s perfect for live performance, home recording, and digital DJ work. Stereo headphone output with A/B switching between assignable sources allows precuing for DJs and mobile musicians—and the assignable aux bus is perfect for creating dedicated headphone mixes and effect sends. You also get zero-latency hardware direct monitoring, ultra-low latency ASIO software direct monitoring, and 1 x 1 MIDI I/O. FireWire Audiophile even has AC-3 and DTS passthrough for surround sound playback.
Full features: 4 x 6 24-bit/96kHz I/O 2 x 4 analog operation (RCA) digital S/PDIF (coaxial) I/O w/ 2-channel PCM digital out also supports AC-3/DTS surround sound headphone output with dedicated level control flexible software-controlled mixing of hardware and software I/O aux sends on all channels and aux output assign allows for dedicated headphone mixes and sends to external effects user-assignable front-panel level control (output, input, software return, aux send) zero-latency hardware direct monitoring low-latency ASIO software direct monitoring momentary switch for A/Bing two software-assignable headphone sources or switching ASIO monitoring on/off 1 x 1 16-channel MIDI I/O power on/off switch with indicator LED powered via FireWire bus* or included DC power supply two convenient high-bandwidth FireWire ports rugged steel construction *requires 6-pin connection
Specifications: frequency response: 20Hz-40kHz +/-0.40dB, 96kHz sample rate dynamic range: -108dB A-weighted signal-to-noise: 106dB A-weighted THD + N: 0.002% (-94dB) sampling rates (kHz): 32, 44.1, 48, 88.2, and 96 compact size: 1-3/4” (h) x 7-1/4” (w) x 5-1/2” (d); 1.7 lbs.
Compatibility: ASIO 2 MME Sound Manager DirectX Mac OS X Core Audio / Core MIDI GSIF
Minimum system requirements (PC): Pentium III 500 MHz or higher; 128 MB RAM Windows 2000 (SP3)/Windows XP (SP1) DirectX 8.1 or higher 6-pin FireWire port or adapter
Minimum system requirements (MAC): Macintosh G3* 600 MHz/G4* 667 MHz or higher w/ OS 9.2.2, 128 MB RAM; G4* 500MHz w/ OS 10.1.5 or OS 10.2.6 or greater, 256 MB RAM (OSX) * G3/G4 accelerator cards not supported; native FireWire ports required
|
