M-AUDIO

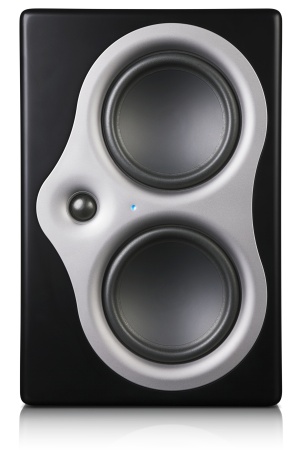

Studiophile DSM3



Top Features

midwoofer-tweeter-midwoofer (MTM) design > minimizes vertical reflections while widening horizontal sweet spot
DSP-controlled digital crossover > incredible tonal accuracy
broad range of onboard digital EQ controls > customizable for your listening environment
dual 6.5” anodized-aluminum cone LF drivers > exceptionally low distortion
1” Teteron soft fabric Neodymium HF driver with built-in heat sink > accurate extension up to 27kHz with minimized power compression
180W Class D bi-amplification > low distortion, high efficiency
analog and digital inputs > up to 24-bit/192kHz
high-density cabinet > good damping and reduced acoustic interference
custom bass-reflex dual-sided flared ports > controlled extended bass response with reduced turbulence
The Studiophile® DSM3 studio monitor is engineered to provide superior monitoring to discerning audio professionals. The design results from collaboration between two powerhouse companies in music technology: M-Audio®, the top U.S. manufacturer of studio monitors,* and Digidesign®, the industry leader in DSP technology. The DSM3 monitor features DSP-based crossover management, an assortment of onboard digital EQ controls, proprietary high-grade driver designs, plus analog and digital inputs for high-resolution audio up to 24-bit/192kHz. A hybrid midwoofer-tweeter-midwoofer (MTM) design delivers the sound of a larger monitor plus the flexibility of horizontal or vertical positioning. With stunning accuracy, clarity and dynamic range, the Studiophile DSM3 monitor makes world-class reference technology accessible to a broad array of creative and professional environments.

*Source: MI SalesTrak

Redefining the World-Class Near-Field Monitor

Over the last 20 years, M-Audio has achieved critical acclaim across diverse lines of music production tools. We attribute much of this success to the fact that each product group operates like a small boutique shop within the organization. The Los Angeles-based engineering team that designed the industry-leading Studiophile line applied their expertise to the DSM drivers, power amps, cabinetry and electronics. Along the way, they worked with top recording engineers and producers to refine the Studiophile DSM monitors for optimal performance.

Powerful DSP

M-Audio engineers worked closely with their counterparts at sister company Digidesign to bring their experience to the Studiophile DSM3 monitor. The powerful onboard DSP engine controls a complex 4th-order digital crossover. It also provides clear and accurate audio imaging by compensating for phase differences between the tweeter and woofers at the crossover point—delivering perfect acoustic alignment and exceptional imaging. And as a result of exhaustive tuning and listening sessions, the DSM3 monitor provides incredible tonal accuracy, excellent dynamic range and exceptionally low distortion.

Tailor the Speaker to Your Room

Your listening environment and speaker placement greatly impact monitor performance. To ensure optimal monitoring in your studio, the onboard DSP also manages a broad range of customizable performance filter settings that allow you to tailor each speaker to your room. DSM3 offers DSP-controlled high and low frequency roll-offs along with an assortment of EQ settings from acoustic space to Q that help optimize the speaker for placement within even the most difficult acoustic environments.

Best-in-Class Drivers

To ensure the greatest sonic clarity, the Studiophile DSM3 monitor features two custom-designed, 6.5-inch anodized aluminum cone woofers that actively reduce distortion by pushing the break-up mode out of the pass band for maximum low-frequency detail at any volume level. The 1-inch ferrofluid-cooled Neodymium tweeter is made of a soft Teteron dome, which strikes the perfect balance between efficiency and damping to produce a controlled high-frequency breakup out to 27kHz. The drivers and their carefully matched power amps provide a wide 37Hz-27kHz frequency response and outstanding dynamic range, ensuring that you hear an accurate representation of your audio at all volumes.



Dual Woofer Design

The Studiophile DSM3 monitor utilizes a unique hybrid midwoofer-tweeter-midwoofer (MTM) vertical array. In an MTM design, the dual midwoofers provide the surface area of a much larger speaker, while also providing greater heat dissipation that delivers better power handling. The DSM3 monitor embellishes this design by placing the woofers closer together—significantly reducing comb filtering artifacts and reducing the monitor’s profile and form factor. While positioning a traditional MTM monitor on its side puts the tweeter too close to the console surface and increases reflections, the DSM3 features an offset tweeter that delivers optimal performance when using either horizontal or vertical monitor placement. This makes the DSM3 monitor ideal for center as well as right and left channels—especially in smaller studios and/or environments where sightlines to video screens must be preserved. This unique design offers pristine imaging and a wide radiation pattern while giving you and your colleagues much more flexibility of placement and use.

Strategically Integrated Design

Each component in the DSM3 monitor is customized to deliver outstanding sound quality in a compact form factor. Featuring an exclusive design, the sturdy cabinet is constructed from high-density material with internal bracing that renders it acoustically inert. The tuned bass-reflex dual-sided flared port offers increased SPL with extended bass response and low turbulence, while the carefully matched Class D power amps deliver ample power with low distortion and excellent efficiency. The custom-voiced components ensure hours of accurate listening without fatigue. And the professional analog and digital inputs support studio-grade audio resolutions up to 24-bit/192kHz, revealing every detail that you’ve created with your digital audio workstation.

Uncompromised Reliability

Far beyond the industry standards, the DSM3 monitor design endures a strenuous 100-hour continuous pink noise qualification process, ensuring its reliability in the harshest studio environments. This 100-hour reliability test starts with each individual driver design. Once each driver design successfully passes, the entire assembly is qualified as a system via the same 100-hour process. This highly rigorous design qualification process ensures that the DSM3 monitors will perform at the highest level—for hours on end, every time you turn them on.


Full Features

hybrid midwoofer-tweeter-midwoofer (MTM) design reduces comb filtering artifacts, resulting in improved crossover performance and pristine imaging
dual 6.5” (203.2 mm) custom low-frequency drivers with anodized aluminum cones provide exceptionally low distortion
1” (25.4 mm) Teteron soft fabric, high-frequency dome with Neodymium magnet, ferrofluid cooling and built-in heat sink—accurate to 27kHz with minimized power compression
onboard DSP manages the complex digital crossover for pristine imaging
DSP-based EQ and Acoustic Space Controls optimize frequency response for any production environment
custom bass-reflex dual-sided flared port delivers controlled extended bass response with reduced turbulence
high-density cabinet yields good damping and reduced acoustic interference
professional digital inputs (up to 24-bit/192kHz): S/PDIF and AES
balanced analog inputs: XLR and 1/4”
bi-amplified with Class D power amps: 100 watts (low frequency) and 80 watts (high-frequency)

Specifications

frequency response: 37Hz-27kHz
peak SPL at 1 meter: 111dB
low-frequency driver: 2 x 6.5” (203.2 mm) domeless anodized aluminum cone
high-frequency driver: 1” (25.4 mm) soft Teteron dome with Neodymium magnet and ferrofluid cooling
crossover frequency: 2.7kHz @ 24dB/octave
HF shelf: +1.5dB, -1.5dB, -3.0dB
mid EQ: +1.5dB, -1.5dB, -3.0dB
high-pass filter: 40Hz, 60Hz, 80Hz, 100Hz @ 12dB/octave
Acoustic Space Control filter: -1.5dB, -3.0dB, -4.5dB
Desk EQ Filter 1: -1.0dB, -2.0dB, -3.0dB @ 220Hz
Desk EQ Filter 2: -1.0dB, -2.0dB, -3.0dB @ 175Hz
Desk EQ Filter 3: -1.0dB, -2.0dB, -3.0dB @ 200Hz
analog inputs: XLR balanced and 1/4” balanced
digital inputs: S/PDIF and AES/EBU (up to 24-bit/192kHz)
input impedance: 20k ohms
input sensitivity: +4dBu yields 90dB @ 1 meter (trim level set to 0)
gain trim: volume trim from -22dB to +10dB

analog-to-digital specifications
maximum input level: 18dBu
signal-to-noise ratio: 102dB (A-weighted)
THN + noise: 92dB
conversion rate: 96kHz

digital power amplifier
output power (1% THD): LF: 100 watts, HF: 80 watts
THD + noise (10 watts, 1kHz): < 0.05%
signal-to-noise ratio: 100dB (A-weighted)
frequency response (+0, -3dB): 20Hz-40kHz
efficiency: > 90%
dimensions: 16” (407 mm) x 10.6” (270.3 mm) x 10.3” (262 mm)
weight: 23.5 lbs. (10.6 kg)
