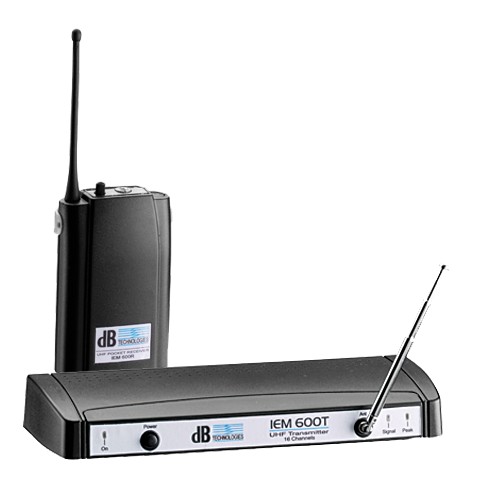

The new IEM600 offers 16 switchable UHF frequencies and has been updated with a high quality input stage for better dynamics and sound performance.

The extremely strong and lightweight receiver, the IEM600 R, is equipped with a 3.5mm mini jack-socket for the earphones, a volume control and an on/off/mute button with LED indication. The separate on/off button allows switching without changing the volume.

Up to four IEM600 can be run in parallel. To install the transmitter into a rack two different rack adaptors are being provided.. Recommended for use with the IEM600 are the MPH-100 MK III headphones.

Specifications

Technical data

Frequency Band  UHF
Diversity  No
Frequencies  16
Switchable Frequencies  Yes
Available Frequency Band
Band LW1: 524.250 - 547.300
Band LW2: 639.250 - 661.125
Band LW3: 750.425 - 769.075
Band UN: 801.650 - 819.650
Band U-UK: 854.900 - 864.950 MHz
Simultanious Systems In Use  up to 4

In Ear Receiver

Housing  Plastics
LED's  Signal, Peak, On
Antenna  External
Operation  On/Off, Volume
Signal Output  3.5 mm jack
Volume Control  Yes
Limiter  Yes
Battery Type  2x AA

In Ear Transmitter

LED's  On, Signal, Peak
Detachable Antenna  No
Signal Input  1x XLR, sym.
Power Socket  External AC/DC Converter

Mechanics

Housing  Plastics
Installation Standard  1 HU
Rack Size  9.5 "
