Specifications
Cable Color: black

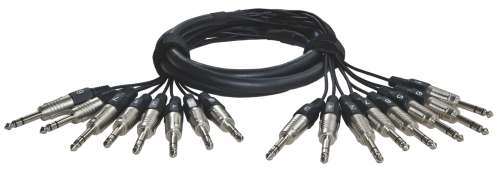

Numbered TRS fan-out
Cable Ø: 15 mm
Available lengths
2 m (6.5 ft.) = Part No. T8T8Pro2
5 m (16.4 ft.) = Part No. T8T8Pro5
Applicable with the following RME products:
Fireface UFX
Fireface UCX
Fireface 800
Fireface UC
ADI-8 DS
ADI-8 QS
M-32 AD, M-16 AD
M-32 DA, M-16 DA
OctaMic II
D-Sub Pin-Out Diagramm Channel 1 Channel 2 Channel 3 Channel 4
Pin 24= (+) Pin 10= (+) Pin 21= (+) Pin 7 = (+)
Pin 12= (-) Pin 23= (-) Pin 9= (-) Pin 20= (-)
Channel 5 Channel 6 Channel 7 Channel 8
Pin 18= (+) Pin 4= (+) Pin 15= (+) Pin 1 = (+)
Pin 6= (-) Pin 17= (-) Pin 3= (-) Pin 14= (-)
GND is connected to Pins: 2, 5, 8, 11, 16, 19, 22, 25. Pin 13 is not connected
RASPOLOŽIVO U DUŽINI OD 2 I 5 METARA!
CIJENA OVISI O DUŽINI KABLA!
