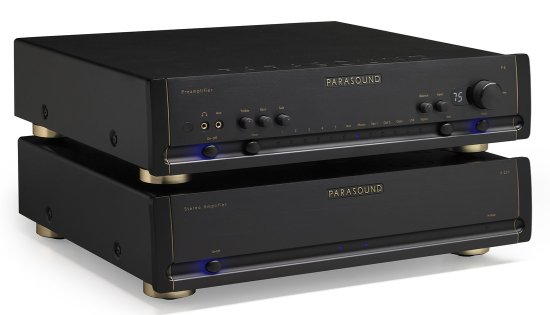

Izvrsna kombinacija Parasound P6 pretpojačala i A23+ izlaznog pojačala 2 x 160 w po specijalnoj cijeni:
P6:
New Features (Changes from the P 5)
- ESS Sabre32 Reference DAC replaces the original Burr-Brown DAC
- USB input is now capable of DSD & 384kHz/32-bit PCM (up from 96Khz/24-bit)
- Burr Brown analog resistor ladder volume control
- Dimmable front panel volume display
- Upgraded USB receiver with "plug and play" operation with Windows 10
- An additional optical input (2 total)
- Ball bearing supported solid aluminum volume knob
- Programable default turn on volume setting
- Favorite volume memory with remote control button
- Increased phono stage gain for lower output cartridges
- Improved Left/Right channel separation and balance tracking
- Sand blasted metal end caps replace plastic end caps on the P 5
- Updated cosmetics with subtle gold highlights
Preamp and DAC Features
- ESS Sabre32 Reference DAC (ES9018K2M)
- Asynchronous USB 2.0 supports PCM up to 384kHz/32-bit
- USB input decodes Native DSD64, DSD128, DSD256 and DoP DSD
- Coax and optical inputs accept PCM up to 192kHz/24-bit
- Analog bass management with high & low pass crossovers
- Home theater bypass input for surround sound integration
- Front panel subwoofer level control
- Dedicated high current headphone amplifier (TI TPA6120)
- Phono input for MM, MC and MI with 100 Ω or 47k Ω load
- Front panel Aux input with automatic +12 dB gain stage
- 5 pairs RCA line level Analog inputs
- 1 pair XLR balanced Analog input
- Balanced XLR and RCA left and right preamp outputs
- 1 balanced XLR and 2 RCA subwoofer outputs
- Bass & treble controls with relay bypass from remote or front panel
- Rear panel IR input and IR loop output jacks
- 12 Volt trigger output
- Back-lit remote control with discrete buttons
- 0.5w standby power consumption meets Energy Star & EU specs
Changes from the original A 23→A 23+
- 125 → 160 Watts (8Ω)
- 225 → 240 Watts (4Ω)
- 400 → 500 Watts (bridged)
- Filter cap: 40,000 uF →54,400 uF
- Crosstalk (20kHz): 63dB → 70dB
- Transformer size: 1.0 kVA → 1.1 kVA
- Refined Halo cosmetic with aluminum end caps & gold highlights
- Updated rear panel with heavy duty speaker terminals from HINT 6
- Upgraded internal gold on gold audio connections
- Updated auto turn on circuit
All Features
- 160 watts x 2 @ 8 Ω RMS, both channels driven
- 240 watts x 2 @ 4 Ω RMS, both channels driven
- 500 watts x 1 @ 8 Ω, in bridged mode
- Circuitry designed by legendary John Curl
- High bias Class A/AB operation
- 160 watts x 2 @ 8 Ω RMS, both channels driven
- 240 watts x 2 @ 4 Ω RMS, both channels driven
- 500 watts x 1 @ 8 Ω, in bridged mode
- Circuitry designed by legendary John Curl
- High bias Class A/AB operation
- 45 amperes peak current per channel
- Stable with speaker impedance dips below 2 Ω
- Balanced inputs with discrete circuits
- Heavy-duty 24k gold-plated 5-way speaker binding posts
- Gold-plated RCA input & loop output jacks
- Direct-coupled signal path, no capacitors or inductors
- DC Servo and relay protection circuits
- AC turn-on inrush surge protection with relay bypass
- JFET input stage, MOSFET driver stage
- 12 beta-matched 15 ampere, 60 MHz bipolar output transistors
- 1.1 kVA shielded toroid transformer w/ independent windings for each channel
- Independent power supplies for input stage, driver stage and output stage
- 54,400 µF filter capacitors for output stages
- Full power is rated all the way down to 5Hz for unrestricted low-end bass
- Harris hyper-fast soft-recovery bridge diode rectifiers
- Automatic turn-on by 12 V trigger or audio sensing
- 2 rack space chassis with rear carry handles
- Rack mount hardware available separately
- Available in silver or black
|
