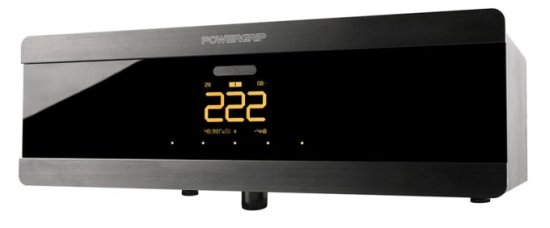

Powergrip YG-3 najnoviji strujni filter u ponudi. Sadrži niz novih značajki i poboljšanja, kao i elegantnu prednju ploču s jedinstvenim prilagodljivim višenamjenskim zaslonom. Sedam tipki osjetljivih na dodir omogućuje konfiguraciju uređaja. Na stražnjoj ploči, YG-3 ima dvanaest filtriranih Schuko utičnica koje mogu isporučiti do 16A. Uz to, YG-3 ima učinkovitu zaštitu od prenapona i DC-a. Osim zaštitnih funkcija YG3 značajno unaprijeđuje zvuk i sliku vašeg AV sustava i nema potrebe za dodatnim skupim strujnim kabelima…
| Voltage range for safe continuous operation of YG-3 PSU |
160 – 320 V |
|
|
| Maximum current of power cord and power socket |
16 A |
| Self power consumption |
1.4 W – 20 W depends on used features |
| Сonsumption in case of full power off by button 2 |
0 W |
| Neutral pass through resistance |
< 0.00005 Ohm |
| Live pass through resistance (high current hi-fi filter without fuse and fuse holder) |
0.015 Ohm |
| Fuse |
Resistance 0.01 Ohm (with holder), size 5 x 20mm, current 16 A |
| DC measure range |
± 999 mV |
| Maximum filtering DC value |
1.8 V |
| Maximum on/off delay |
60 sec |
|
|
| Protection voltage range (turn off connected devices) |
low: 190 V, high: 256 V |
|
May be influenced by other parameters like mains distortion to provide best protection and exclude false triggering |
| High Voltage Surge Protection |
Varistors |
|
|
| Controls |
7 sensor buttons and full of switch on a bottom |
| Remote control |
Wi-Fi (Ewelink APP) |
| Integration (RTI, Сontrol4, Crestron etc.) |
Trigger, RS232 |
| Screen menu |
Brightness, color, style, filtration, always on sockets, delays |
| Auto switch on |
Power sensor (detect connected device power state), light sensor |
|
|
| PACKAGE |
Power console
Power cord (2 m)
Rack mounts
Antenna grounding cable
Direct power cord connection blanket |
|
|
| Number of sockets |
12 |
| Power cable cross size |
3.3 mm² |
| Cross size of power cables internal wiring |
3.3 mm² (High current Hi-Fi section) |
| Console weight |
7.6 kg |
| Dimensions (H x W x D) |
156.5 х 440 х 280 mm (incl feet) |
|
