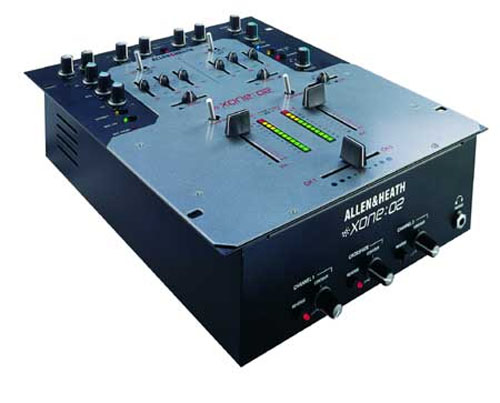

From inputs to outputs, we created Xone:02 to be the world’s greatest battle / scratch mixer. Every fader is a deluxe Penny & Giles VCA design, they’re all reversible, they all have contour controls and they can all be easily replaced by removing the steel faceplate. We’ve kept the fader area clear for action and we’ve kept controls like pan and EQ out of the way on low profile sliders. Even the transform switches can be rotated to work the way you like them.

Technical Specifications
OdBu = 0.775 Volts rms +4dBu = 1.23V rms
OdBu = 1 Volt rms -10dBV = 316mV rms
Maximum output level
MAIN OUT +23dBu into >2K ohm load
EFFECT SEND +21dBu into >2K ohm
LINK/BOOTH +21dBu into >2K ohm
Internal headroom
Channels +21dBu
Mix to output +23dBu
Peak indicators meters
12bar peak reading Peak on 8dB before clipping
Frequency response
20Hz-30kHz 0/-1dB
Distortion THD+noise measured at +10dBu 1kHz
0.04%
Crosstalk channel shutoff measured at 1kHz
<90dB
MIC EI Measured with 150ohm load
129dB
Residual output noise - non weighted 22Hz-22kHz filter
<88dBu
Mix noise - non weighted 22Hz-22kHz filter
<-81dBu
Power Supply Internal switch mode power unit with auto sensing mains input.
Mains In socket IEC 3 pin
AC Mains 100-240V AC 50/60Hz
Power lead Country dependent
Consumption 30W max
Fuse Rating T500mA 20mm
Internal power rails +/- 16volts
