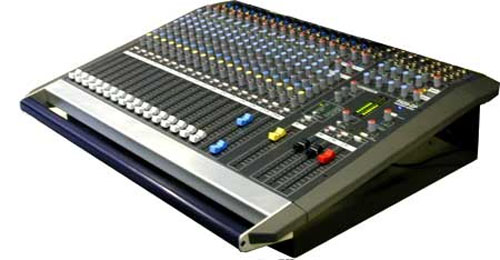

PA series mixers are designed to provide all the tools you need to run a regular stereo PA system in a straightforward ‘walk up and go’ format. You’ll quickly feel at home with these desks, but you’ll also find that we’ve included a number of those innovative touches that you only get from designers who have many years of ‘real world’ experience. If you care about quality you’ll also appreciate the build standards that the PA series conforms to, including the same individual vertical circuit boards, nutted pots and solid copper buss interconnection as our acclaimed ML series consoles. As for audio performance, PA series mixers have the wonderfully full, open, natural quality that you’d expect from a professional ALLEN&HEATH desk.
Technical Specs 0dBu = 0.775 Volts rms 0dBV = 1 Volt rms Maximum outputlevel TRS +21dBu into 2k ohm load Nominal outputlevel L-R +0dBu into 600ohm max load Other o/p's +0dBu into 2k ohmmax load Internal headroom Mix to o/p +21dB Channels+21dB Peak LEDs 5dB before clipping Noise -measured rms 22Hz to 22kHz Mic EIN ref 150 ohm source -128dB L-Rresidual <-89dBu (nothing routed) L-R mix <-85dBu (channels routed) Frequency response 20Hz to 30kHz +/- 0.5dB THD +10dbu, 1kHz Channel to mix o/p <0.006% Crosstalk - 1kHz Ch to ch <-90dB Chl mute shutoff<-95dB Ch fader shutoff <-95dB Power Amp Outputpower Constant Power switchable = 2 x 500w RMS into 4 ohm = 2 x 500wRMS into 8 ohm Frequency response THD+N <0.02%@1kHz MainsPower - Internal unit, linear regulated Internally wired to requiredcountry voltage AC mains input 100V to 240V AC@50/60Hz Powerconsumption 1600W max Mains fuse rating 100-120V AC use T10A 20mm 220-240V AC use T8A 20mm
|
