Big-budget broadcasters and studios have been enjoying the benefits of digital mixing for a while, so we thought it was about time gigging musicians, schools, small churches and AV hire companies got a piece of the action.

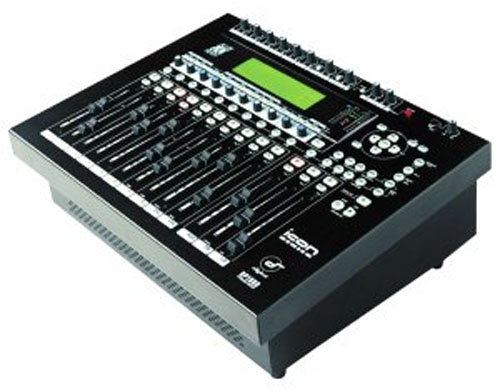

We set out on a mission to create a ‘gig in a box’, a compact mixer with digital gates, compressors, EQs and FX built in. Now for the price of a regular mixer you get a powerful digital system with a rack’s worth of quality extra gear inside, plus the great bonus of being able to save your settings to ensure perfect sound time after time.

Technical Specifications
0dbu = 0.775 volts rms 0dBV = 1 Volt rms
Maximum output level
Jack +18dBu into 2k ohm load
Phono +10dBu
Internal headroom
+18dB
Converter spec. 128 times oversampling
A/D converter 20 bit
D/A converter 20 bit
Frequency response
20Hz to 20kHz +0/-1dB
Total harmonic distortion THD + noise measured at + 14dBu 1kHz
Input to output <0.008%
Crosstalk measured at 1kHz
Inter channel <-90dB
Noise measured rms 22Hz to 22kHz
Mic EIN -127dBu referred to 150 ohm source
Dynamic range
20Hz-20kHz 91dB
A-weighted 94dB
Mains power
Internal unit, linear regulated Internally wired to required country voltage
AC mains input 100 to 240V AC @50/60 Hz
Power consumption 1000W max
Mains fuse rating 100-120V AC use T10A 20mm
220-240V AC use T5A 20mm
