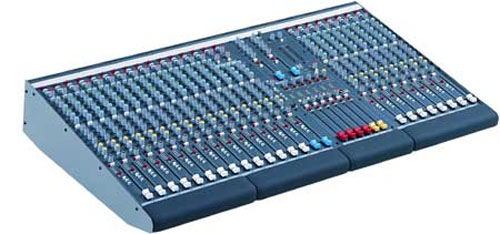

We built GL2200 to be a ‘go anywhere, do anything’ desk. With its sturdy vertical PCB construction, dual front-of-house / monitor mixing mode switching, 4 groups, 6 switchable auxes, direct outs, line-up oscillator, talkback and more, this console can handle pretty much any live mixing or recording task you can throw at it.
We’re thrilled that GL2200 has become the leading mixer in its class and that it’s used and loved by so many rental companies, bands and churches who need great sound with no fuss

Technical Specifications
0 dBu = 0.775 Volts rms
Operating Levels
Channels 0dBu Headroom +21dB
Mix -2dBu Headroom +23dB
Frequency Response
Mic to main output (+40dB) 20Hz to 30kHz +0/-0.5dB
Line to main output (0dB) 20Hz to 30kHz +0/-0.5dB
Distortion @1kHz +14dBu
THD+noise < 0.01%
CMRR Common mode rejection @1kHz
Mic (+40dB) > 80dB
Mic + Pad (0dB) > 50dB
Crosstalk Referred to driven channel @1kHz
Channel to channel < -95dB
Mute shutoff < -90dB
Fader shutoff < -90dB
Noise Performance
Measured rms 22Hz to 22kHz unweighted
Mic EIN with 150 ohm source -128dB
Residual output noise < -98dBu
Mix noise, nothing routed < -94dBu
Mix noise, 24 channels routed < -82dBu
Metering
Reading 0vu = 0dBu at XLR outputs
LED meters Peak reading, 3 colours
VU meters Ave reading, Illuminated moving coil
Peak indicators 5dB before clip, multi-point sensing
Input meters 4 segment LED (sig, 0, +6, pk)
Group/Matrix meters VU
L,R,C meters VU and 16 segment LED
Channel Filters
Slope 12dB/oct high pass
Frequency OFF to 400Hz variable
Mono Equaliser
HF +/-15dB, 12kHz Shelf
HM +/-15dB, 500Hz to 15kHz bell
LM +/-15dB, 35Hz to 1kHz bell
LF +/-15dB, 60Hz Shelf
Stereo Equaliser
HF +/-15dB, 12kHz shelf
HM +/-15dB, 2.5kHz bell
LM +/-15dB, 250Hz bell
LF +/-15dB, 60Hz shelf
Lamp Connectors
Connector XLR-F 4pin
Rating 12V 400mA max
