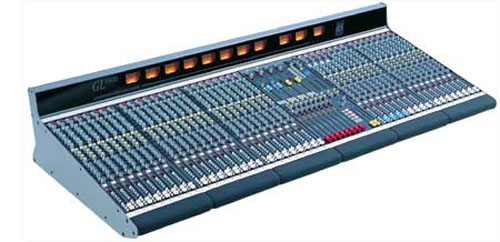

We originally set out to create a compact, flexible 8-group mixer on a 4-group budget. Once we’d met that seemingly impossible design brief, we even managed to include mute groups and a 12x2 matrix, giving you really serious control and output capability at a sensible cost. Since then, the GL3300 has won us a lot of friends in hire companies and multi-purpose venues by performing so many jobs so well. It’s a powerful, easy to use front of house console. With the press of a few switches it’s a thoroughbred monitor mixer with 8 aux mixes on 100mm faders. How’s that for bang for your buck?
We offer 4 versions so that customers can choose the one best suited.
A - All mono channels (2 stereo returns above the masters) -------------------------------------------------------------------------------- B - 4 full stereo channels to right of masters -------------------------------------------------------------------------------- C - 4 full stereos to extreme right -------------------------------------------------------------------------------- D - 8 full stereos to right of masters
Technical Specifications 0 dBu = 0.775 Volts rms
Operating Internal operating level 0dBu channels, -2dBu mix Internal headroom +21dB channels, +23dB mix to output Max outputs balanced +27dBu >2kohm max load unbalanced +21dBu >2kohm max load
Frequency Response Referred to 1kHz @ +4dBu, 20Hz to 30kHz Mic in to L-R out, 40 dB gain 0/-1dB Line in to L-R out, 0dB gain 0/-1dB
Distortion THD+noise @ +14dBu, 1kHz output Mic in to L-R out, 40 dB gain 0.006% Line in to L-R out, 0dB gain 0.006%
Crosstalk Referred to driven channel @ 1kHz Adjacent channel < -100dB Fader closed < -90dB Mute on < -80dB Pan pot isolation < -72 dB
Noise Performance Measured rms, 22kHz bandwidth Mic in EIN (150 ohm source) < -128dB Line preamp, 0dB gain < -93dBu L-R residual noise <- 98dBu, 102dB s/n L-R faders '0', nil routed < -90dBu, 94dB s/n L-R mix noise (16 channel routed) < -86dBu, 90dB s/n Group mix noise < -87 dBu, 91dB s/n
CMRR Mic in, 40dB gain @ 1kHz > 80dB
Metering Input meters 3 segment led Mix meters 4 segment led (signal, 0, +6, peak) Output meters 12 segment led Led meter response Peak reading Peak indicators 0n 5dB before clipping Signal indicators on -20dBu Integral VU meterbridge illuminated VU moving coil meters
Accessories Expander GL3300-8M 8 mono channel expander GL3300-4SM 4 stereo, 4 mono channel expander GL3300-4MS 4 mono, 4 stereo channel expander GL3300-8S 8 stereo channel expander Sys-Link™ GL3300-SL Sys-Link™ expander option GL3300-8GD 8 Group output option Power Supply RPS11 300W rack power unit with DC cable RPSD2 Dual supply monitor
|
