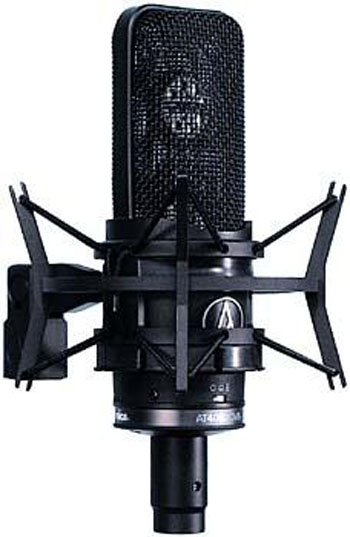

Transparent uppers/mids balanced by rich low-end qualities combine with advanced acoustic engineering for extensive performance capabilities and highest quality Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics achieved remain constant over years of use Three switchable polar patterns: omni, cardioid, figure-of-eight Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards Switchable 80 Hz hi-pass filter and 10 dB pad Includes AT8449 shock mount AT4050 Specifications Element Dynamic Range (Typical) Condenser 132 dB, 1 kHz at Max. SPL Polar Pattern Phantom Power Requirements Cardioid, Omni, Figure-of-eight 48V (±4V) Frequency Response Switches 20 - 18,000 Hz Polar pattern; 10 dB pad; roll-off Open Circuit Sensitivity Low Frequency Roll-off -36 dB (15.8 mV), re 1V at 1 Pa 80 Hz, 12 dB per octave Impedance Weight 100 ohms 18.0 oz (510 g) Maximum Input Sound Level Output Connector 149 dB SPL, 1 kHz at 1% T.H.D. XLRM-type Signal to Noise Ratio 77 dB, 1 kHz at 1 Pa Accessories Furnished: AT8449 shock mount; microphone dust cover; protective case
|
